CMS 600-3

  • Has 6 microphone inputs
  • Has parametric and graphic equalizer
  • It has two line effects
  • Number of MON outputs: 1
  • Number of AUX outputs: 1
Manufacturer: Dynacord brand
Call for pricing
Ship to
Shipping Method
Estimated Delivery
No shipping options

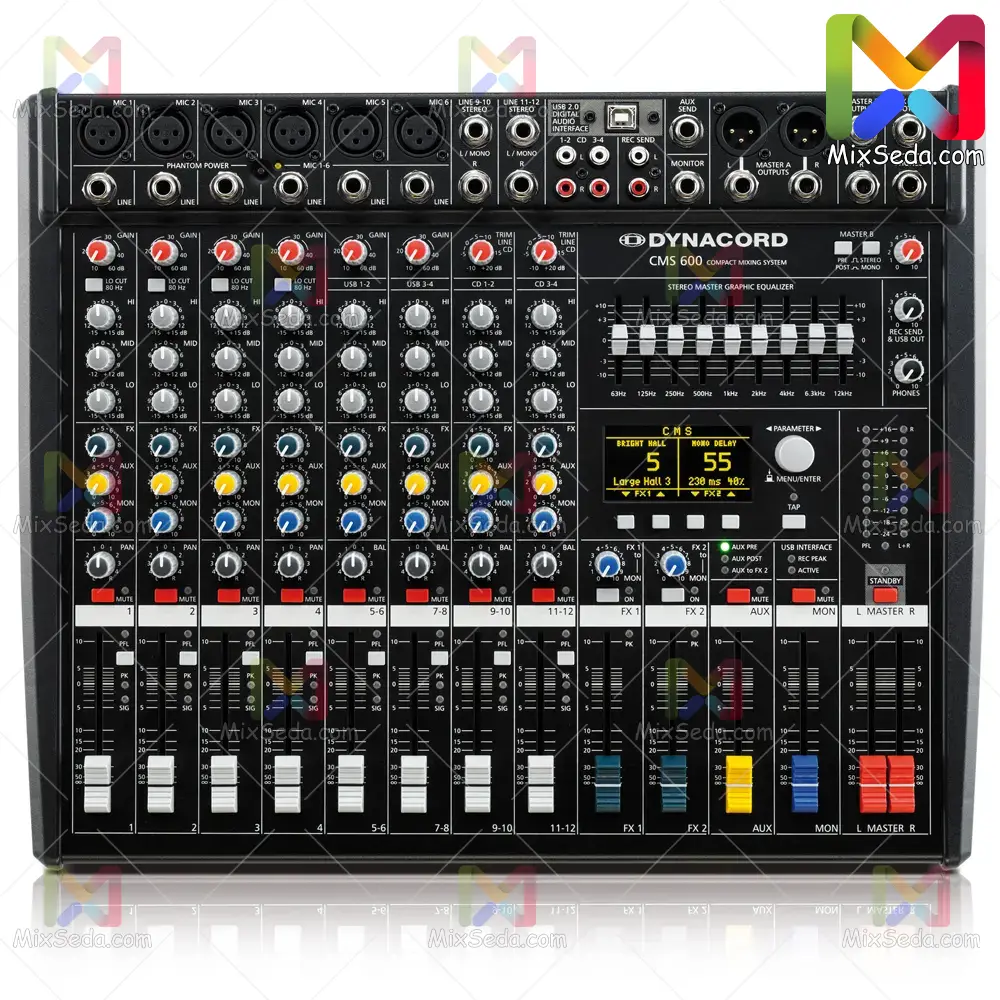

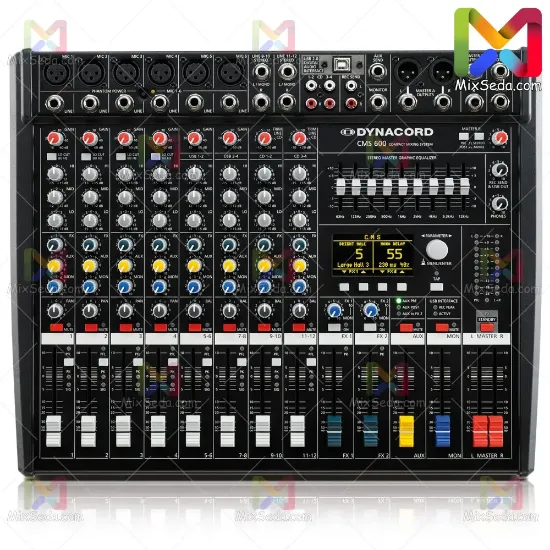

Dynacord CMS 600-3 mixer introduction

This model is the smallest model of Dynacord mixer, which, of course, has truly amazing capabilities.
This device has four microphone input lines as balance and four stereo input lines as unbalanced. This means that in total you can connect 6 microphones to this device as standard.
The disadvantage of this device compared to other Dynacord products is the more limited parametric and graphic equalization. It makes sense that the tighter the equalizer, the less maneuverability you have over the reproduced sound.
As you know, the model of this device is CMS and according to rules and regulations CMS mixers have no amplifiers. So you will need an amplifier to connect this mixer to a passive band, but you can connect this mixer to an active band without the need for an amplifier.
Another advantage of this mixer is the small size of this mixer compared to other mixers from this company. If you don't need a professional mixer and want to get a long-lasting mixer at the lowest cost, this product may be one of your options.

Like other mixers from this company, there is the ability to connect to a computer as a sound card to get audio output in this product. It is really suitable for recording the sound from the mixer or other activities.
The effect used in this model consists of two completely separate circuits, each of which has 100 stored patterns and of course can be edited, which can be defined and programmed up to 20 hand effects patterns with the desired name for the device.

8‑channel compact mixing system

Intuitive mixer section: with 8 input channels with 4 Mic/Line, 2 Mic/Stereo-Line, 2 Stereo-Line inputs

2 High-Quality FX processors, editable with 100 factory and 20 user presets

Professional 4×4 24-bit/96kHz USB interface, recording software and MIDI interface for FX control

Stereo EQ for the main mix

First-class components ( e.g. ALPS faders and potentiometers)

Large, contrast rich OLED display

Lightweight (5.8kg) super compact package

The MIC/LINE ChannelsIn the mixer section, a total of 8 channel strips are available: 4 MIC / LINE channels, 2 MIC / Stereo USB channels (‘Super Channels’) and 2 stereo LINE channels.

The MIC / LINE channels offer extremely low-noise and low-hum electronically balanced XLR microphone inputs with an extremely low distortion factor (typ. 0.002%) for the connection of low-impedance microphones.

For condenser microphones, phantom power (+48 volts) is centrally switchable. The LINE inputs are also electronically balanced and implemented as TRS sockets.

In addition to a Gain control, a highly efficient 3-band equalizer, FX send, AUX send and a Monitor send as well as either Panorama or Balance controls are available.

The four MIC / LINE channels provide a switchable 80Hz Lo-Cut filter to cut-off unwanted rumble, whilst the Super Channels 5-6 and 7-8 are supplied by the USB stereo inserts 1-2 and 3-4.

The STEREO-LINE channels (9-10 and 11-12) offer electronically balanced TRS inputs for the connection of electronic instruments such as keyboards, drum-computers, guitars and basses with active electronics, as well as all other high-level stereo signal sources such as additional mixers, effects devices etc.

CD or MP3 players can be connected to the additional cinch (RCA) inputs CD 1-2 and CD 3-4, which are switched in parallel.

The tone controls and sends are identical to those of the MIC / LINE channels.


All input channels, provide a Signal / Peak LED to assist level control.

The SIG LED illuminates at around -30 dB and the PK LED at 6dB beneath the distortion threshold.

A MUTE button and a PFL button (in channels 5-12 in stereo) are further features found in all input channels.

The DIGITAL AUDIO InterfaceThe DIGITAL AUDIO INTERFACE features two stereo channels, present as USB 1-2 and USB 3-4 in Super Channels 5-6 and 7-8 respectively.

This professional interface is implemented with 24-bit resolution and sampling rates up to 96 kHz, satisfying studio requirements.

The USB sends are supplied with the Master L and R, AUX and MON signals. The DIGITAL AUDIO INTERFACE can be used for input and output simultaneously.

Via the USB 2.0 port of your PC / Mac, four channels can be transmitted simultaneously in each direction.

When a USB 1.1 interface is used, two channels can be transmitted simultaneously in each direction.

The CMS is designed for the level of standard PCs / Macs; the gain level can easily be adjusted from the connected computer.

Included in the delivery is an instruction sheet and a licenses code for the Cubase LE software.

PC MIDI Interface

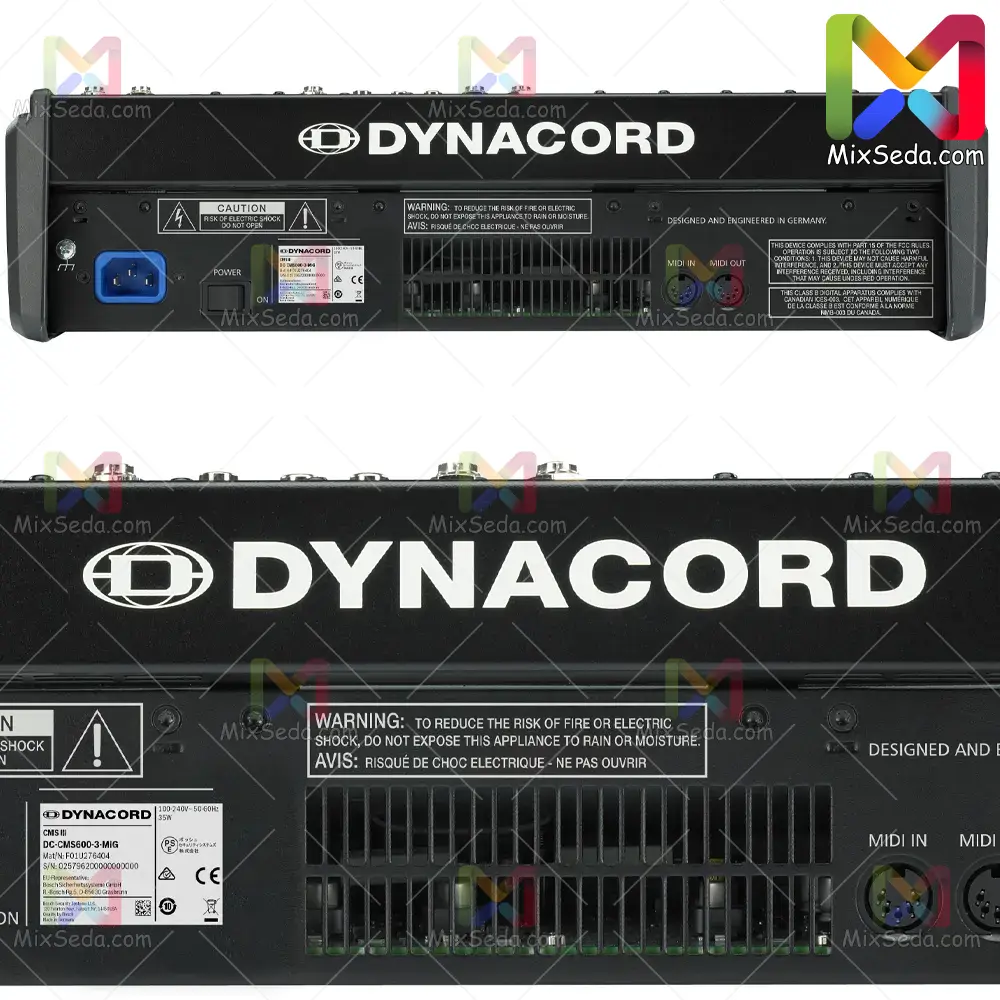

The CMS includes a fully-featured PC MIDI interface. The MIDI input also supports the remote switching of both internal effects units using a master keyboard or MIDI footswitch.

MasterMaster Section features the Master A L+R sends (on separate faders), an additional Master B send (switchable pre/post master A and mono/stereo), the stereo effects returns, and the master sends of the AUXiliary and MONitor busses.

If the AUX buss is not used to supply FX 2, it can be switched pre or post fader to use as an additional monitor or FX send.

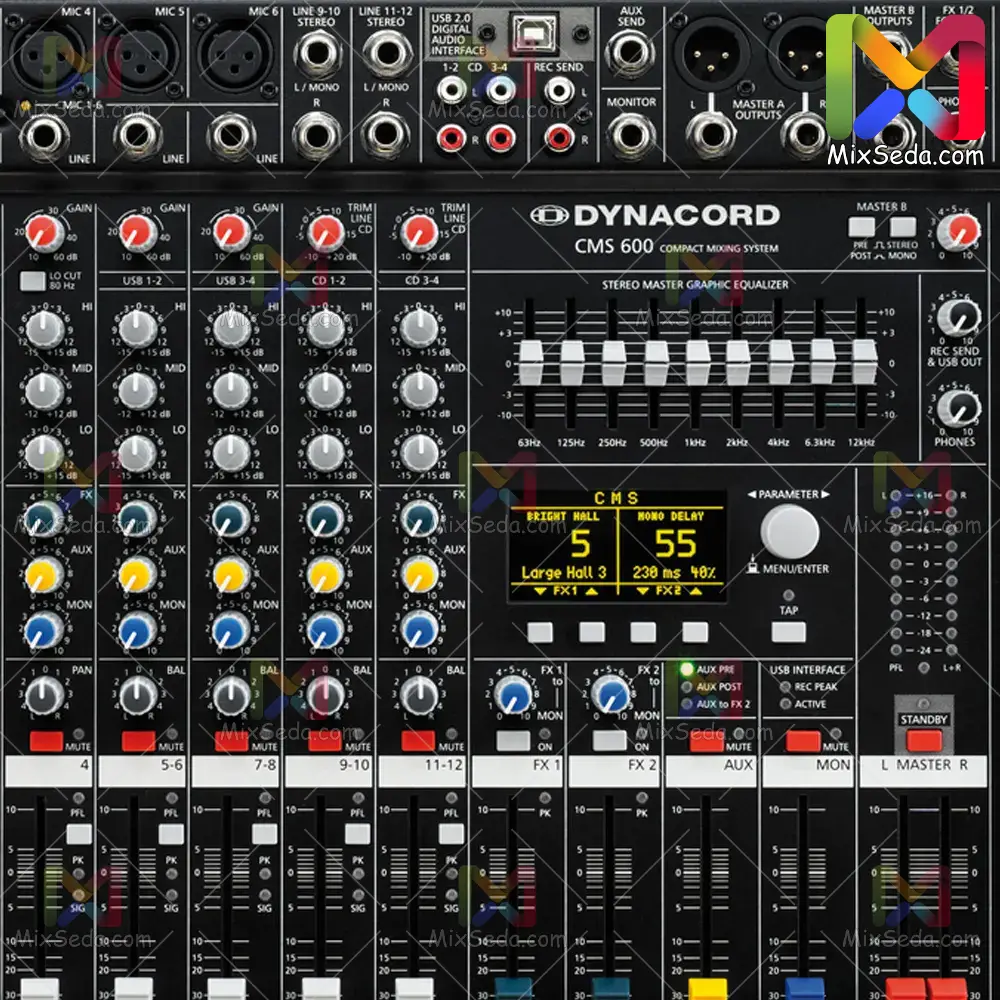

The 9-band stereo equalizer in the master section allows you to adjust the frequency response to the acoustics of the room.

The REC SEND and USB OUT controls determine the level of the master L+R signal at the Rec Send sockets and in the output channels of the digital USB interface.

PHONES allows you to adjust the volume of the headphones output.

Two ten-LED meters provide an overview of the power amplifier level.

When the PFL switch is activated, the left-hand LED chain shows the internal level of the master buss in dBu.

The STANDBY switch mutes all outputs with the press of a single button.

For the playback of e.g. background music, the DEVICE SETUP menu allows you to route stereo channel 11-12 for standby operation directly to the power amplifiers.

Stereo Effects and ProcessingCMS is equipped with two very high-quality, 24-bit stereo effects processors, FX 1 and FX 2; they operate independently and can therefore be mixed.

The two effects units are fully identical in their design. Each effects section offers 100 presets including studio-quality reverb, delay and modulation effects selected by means of the display.

When a delay effect is active, the actual delay time can be synchronized to the beat of the music using the TAP key.

Customized effects can be created modifying individual parameters of the presets and storing the results in the 20 user memories.

Both effects units are supplied by the FX Send buss. In the DEVICE SETUP menu, you can configure the AUX send buss to function as an FX 2 send, so that only the FX 1 effects unit is supplied by the FX 1 buss.

In this way, the two effects devices can be used independently of each other. The effects can be mixed separately to the master and monitor busses.

To manage the FX, the large, high-contrast OLED display is easily read from a wide range of viewing angles, even in very bright surroundings.

The operation of the effects units and processing menus is intuitive and made easier still through the use of soft keys and a rotary encoder.

Thanks to its impressive feature set and versatility, the CMS 600-3 mixer is the ideal choice for all professional applications in which few channels, yet high audio quality, are required.

Being light and compact, it poses no transport problems. The CMS 600-3 mixer is also a great solution in many fixed installation applications.

Performance without compromise.

The pro audio mixer amongst mixers. Unique. CMS 600-3
